Additional information

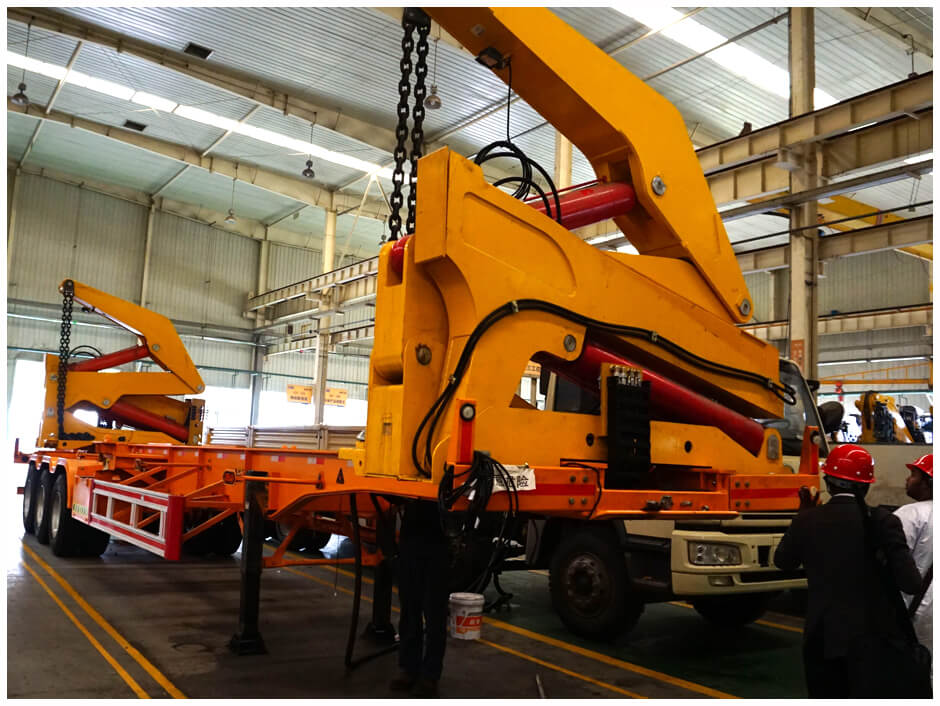

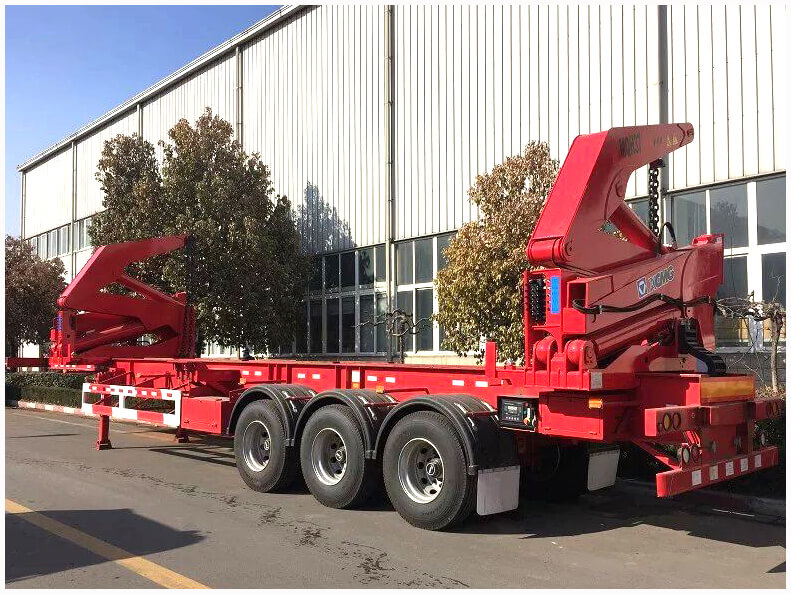

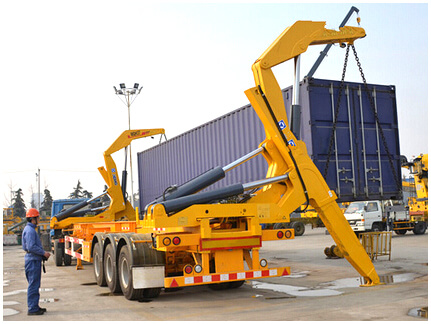

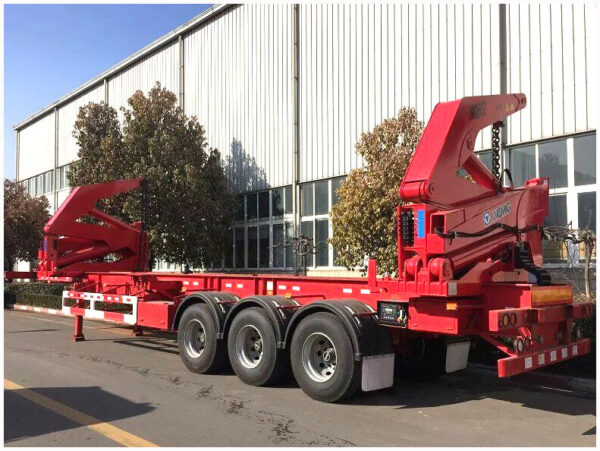

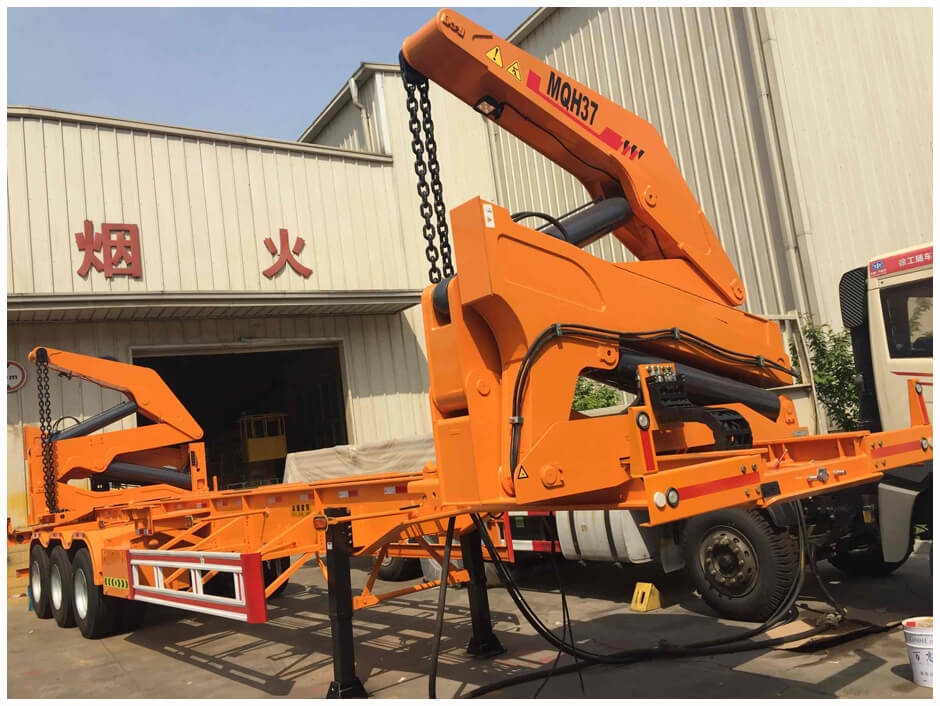

| Model | Container Side Loader Semi Trailer |
|---|---|
| Dimension | 13900 x 2500 x 3990mm |
| Curb Weight | 14Tons |
| Loading Capacity | 60 Tons |
| Lifting System | XCMG brand, MHQ37 model, 37 Tons |
| Twist Lock | 12 sets, suitable to accept 1×20, 2×20 or 1×40 container, Manual operation |
| Kingpin | JOST 2.0 / 3.5 Inch |
| Landing Gear | JOST 28 Tons |
| Main Beam | Height 500mm, Top flange 14mm, Web 8mm, Bottom flange 16mm |
| Side Beam | 18mm steel channel |
| Suspension | America type mechanical suspension |
| Spring Leaf | 90mm x 13mm x 10 layers |
| Axles | FUWA Brand, 13Tons or 16Tons |
| Tires | 12.00R20 or 315/80R22.5 |
| Brake Chamber | T30/30 + T30 spring brake chamber, one piece of 45L air tanks |
| Electrical | 24V |
| Tool Box | 1000 x 500 x 500 mm |
